Big power. Small footprint.
Specifications Videos
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 5
Processor generation
Intel Core Ultra (Series 2)
Processor model
235
Processor cores
14
Processor threads
14
Processor boost frequency
5 GHz
Performance cores
6
Efficient cores
8
Performance-core Max Turbo Frequency
5 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core base frequency
3.4 GHz
Efficient-core base frequency
2.9 GHz
Processor cache
24 MB
Processor cache type
Smart Cache
Number of processors installed
1
Processor base power
65 W
Maximum turbo power
121 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
27 TOPs
NPU performance up to
13 TOPs
GPU performance up to
6 TOPs
Memory
Internal memory
16 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 16 GB
Memory slots
2x SO-DIMM
Non-ECC
Yes
Memory data transfer rate
5600 MT/s
Storage
Total storage capacity
512 GB
Storage media
SSD
Optical drive type
No
Number of storage drives installed
1
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
SSD memory type
TLC
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Graphics
Discrete graphics card
No
On-board graphics card
Yes
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® Graphics
On-board graphics card model
Intel® Graphics
Performance
Market positioning
Business
Motherboard chipset
Intel® Q870
Trusted Platform Module (TPM)
Yes
Product type
Mini PC
Trusted Platform Module (TPM) version
2.0
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
LAN controller
Intel WGI219LM
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2×2
Bluetooth
Yes

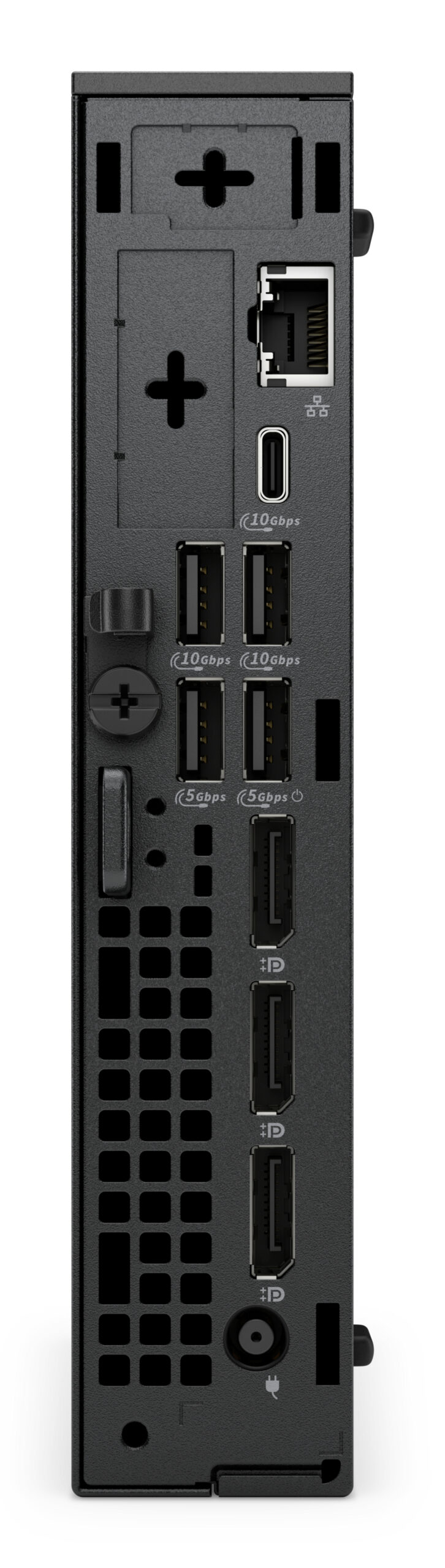

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2×2 Type-C ports quantity
1
DisplayPorts quantity
3
DisplayPort version
1.4a
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
DC-in jack
Yes
Number of rear USB ports
5
Number of front USB ports
3
Number of front audio ports
1
Power
Power supply input voltage
100 – 240 V
Power supply input frequency
50 / 60 Hz
Design
Chassis type
Micro PC
Placement supported
Horizontal/Vertical
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Software
Operating system architecture
64-bit
Operating system installed
Windows 11 Pro
Display
Audio
Audio chip
Realtek ALC3204
Audio system
High Definition Audio
Operational conditions
Operating temperature (T-T)
10 – 35 °C
Storage temperature (T-T)
-40 – 65 °C
Operating relative humidity (H-H)
20 – 80%
Storage relative humidity (H-H)
5 – 95%
Operating altitude
-15.2 – 3048 m
Non-operating altitude
-15.2 – 10668 m
Operating vibration
0.26 G
Non-operating vibration
1.37 G
Operating shock
40 G
Non-operating shock
105 G
Weight & dimensions
Width
36 mm
Depth
178 mm
Height
182 mm
Packaging content
Mouse included
Yes
Mouse connectivity
Wireless
Keyboard included
Yes
Sustainability
Sustainability certificates
ENERGY STAR, EPEAT Climate +, EPEAT Gold
Doesn't contain
PVC/BFR
Keyboard
Keyboard connectivity
Wireless
